Val-d'Or, Québec - Cleghorn Minerals Ltd. (TSXV: CZZ) ("Cleghorn" or the "Company") is pleased to announce Nickel-Copper-PGE and Gold-Silver-Zinc surface channel sampling results, on the Company's 100%-owned Meech Lake - Matachewan Prospect, located in northeastern Ontario.
2023-2024 Project Exploration Program Summary
A Phase II exploration program on the Meech Lake - Matachewan Prospect was completed in the Fall of 2023. The program consisted of detailed mapping and channel sampling over the Kell's Showing (Ni-Cu-PGE), T25 Trench Area (Au-Ag-Zn), Waterhole Showing (Au-Ag-Zn), and Kell's Cabin Showing (Au-Ag-Zn) of previously excavated historic pits and trenches (2018). The objective of the mapping and channel sampling program was to define and characterize the surface mineralization outlined in the 2018 drill program.
A total of eight (8) excavations were mapped and sampled with four (4) on and over the western inferred strike extensions respectively of the Kell's Showing (designated Trenches 2-5 on the accompany map below), one (1) in the area of the T25 Showing (designated Trenches 1a and 1b - Note 1b was not washed but channel sampled, one (1) on a historical trench between the T25 and Waterhole Showings (designated Trench 6 on the accompany map below), one (1) on the Waterhole Showing (designated Trench 7 on the accompany map below), and one (1) on the Kell's Cabin Showing (designated Trench 8 on the accompany map below).

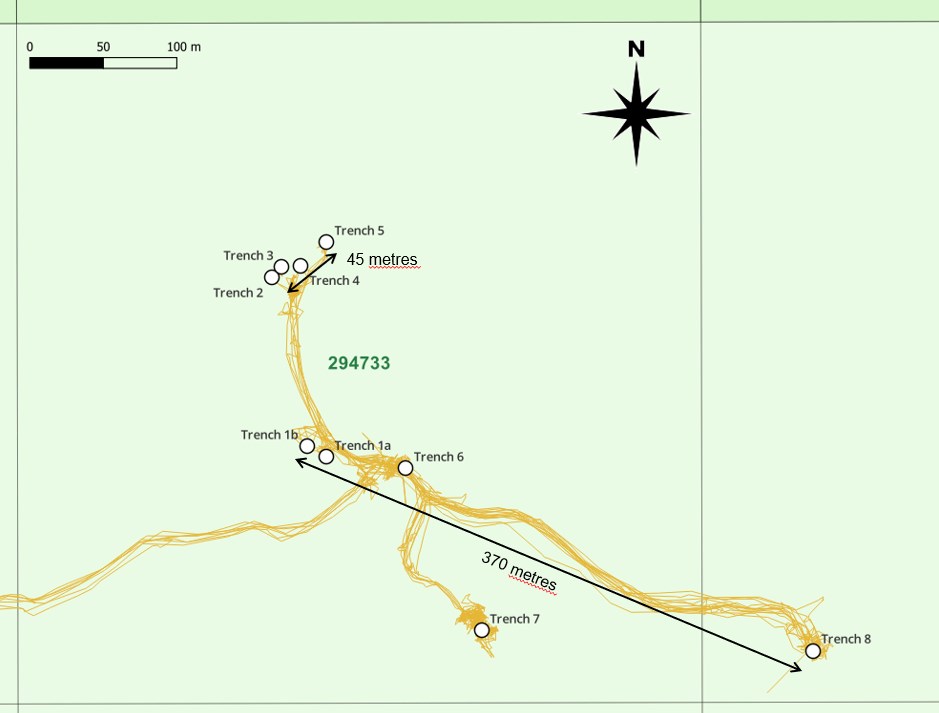

Stripped Areas Location Map
A total of 42 channel samples were collected over the washed and mapped historical pits and trenches.
During the second quarter of 2024, the channel sample assay results were received from the laboratory. A summary of the geology, sample highlights and the accompanying detailed mapping / channel maps for the three (3) main mineralized zones on the property identified to date, are as follows:
Kell's Showing (Ni-Cu-PGE):

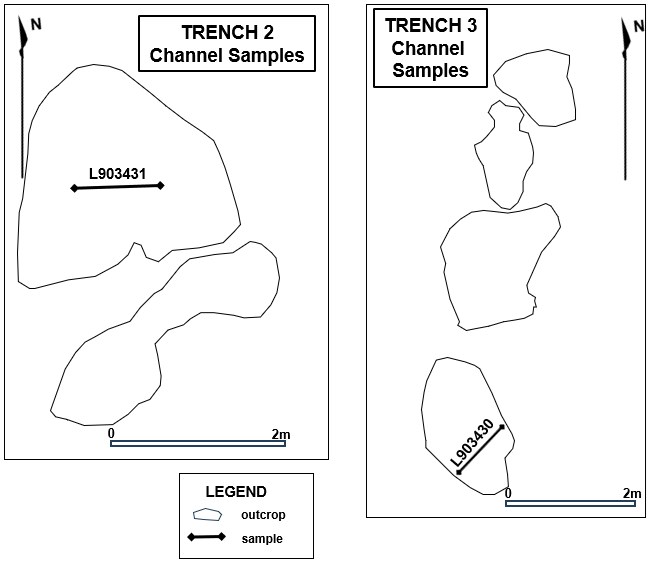

Image 1

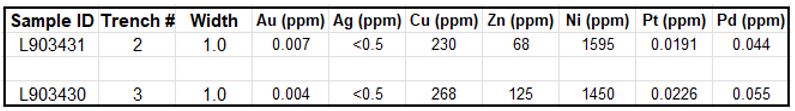

Table 1
Image 2

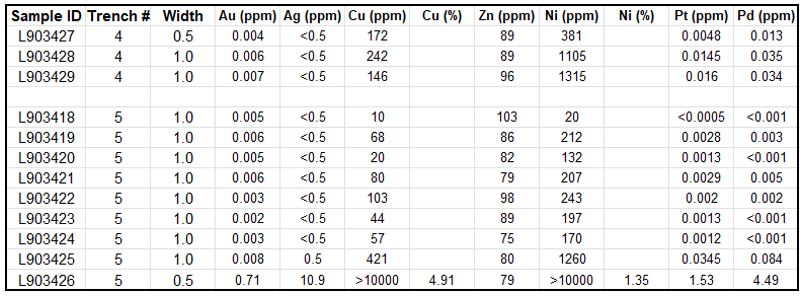

Table 2
Left-Trench 4 channel samples in host gabbro with elevated nickel values in gabbro hostrock; Right-Trench 5 channel samples; sample L903426 was taken over a 12 cm long sulphide inclusion in the gabbro hostrock
Waterhole Showing (Au-Ag-Zn):
Image 3
Table 3
Image 4

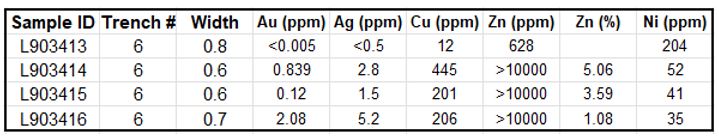

Table 4
Trench 6 Shear zone and weak quartz stringers crosscutting mafic volcanics with elevated Zn values;

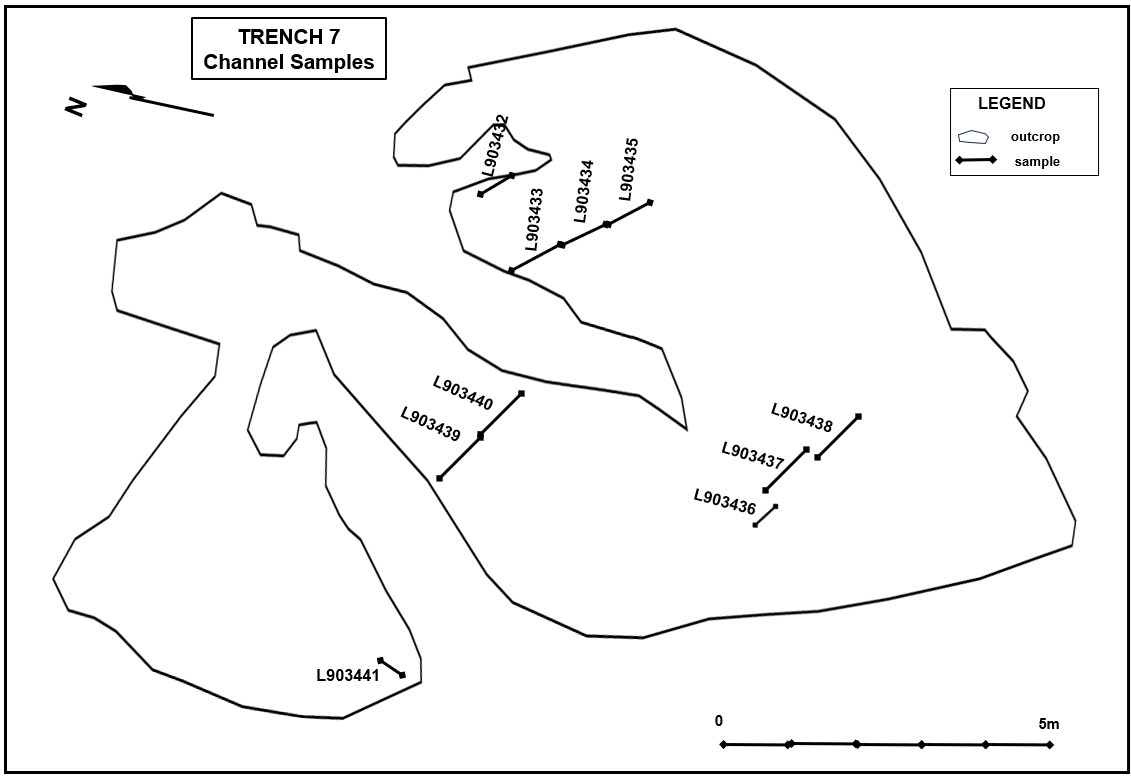

Image 5

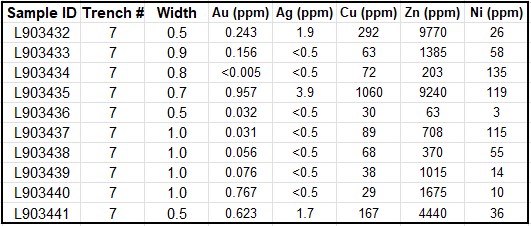

Table 5
Trench 7 channel samples taken over local oxidized shear zones with quartz stringers cutting massive mafic volcanics. Elevated Zn and Au values appear to be associated with oxidized zones;
Kell's Cabin Showing (Au-Ag-Zn):
Image 6

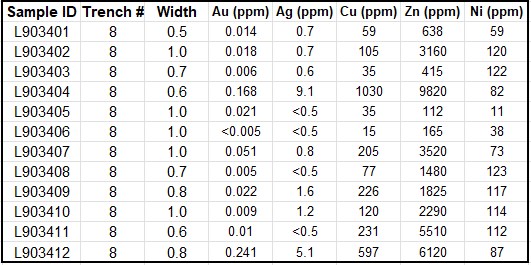

Table 6
Trench 8 channel samples were taken over local oxidized shear zone, veining, and fracture zones cutting the mafic metavolcanic hostrock.
In conclusion, this additional exploration work conducted by Cleghorn on the property further confirmed the presence of two separate mineralized systems on the property, previously documented in a series of historical pits and/or trenches. They are represented by the Kell's Ni-Cu-PGE Showing and the Waterhole Au-Ag-Zn Showing. These two mineralized trends have now been defined over 45 metres (Trench 2 to Trench 5) and 370 metres (Trench 1B to Trench 8), along their respective mineralized trends.
It is recommended that the following program be initiated on the property to follow-up on these results:
2017-2019 Exploration Program Highlights:
Please refer to the October 1, 2018, October 24, 2018 and March 21, 2019 press releases for details of these previously released drill results and Property Compilation - DDH Plan map for the drill-hole locations.
Quality Assurance/Quality Control Protocol:
All channel samples were submitted to ALS Minerals, an accredited mineral analysis laboratory. Sample preparation was completed in Val-d'Or, Québec and analyses in Vancouver, British Columbia. Nickel, copper, cobalt, zinc and silver values were
determined by a 61 element, Four Acid / ICP-AES analysis and gold values were determined by a 30-gram fire assay and AAS finish. Platinum, palladium and gold values were determined by 30-gram fire assay with ICP finish. Samples, which received over-limit
values, underwent further analysis using ALS Minerals assay procedure Ni-OG62 (for nickel), Cu-OG62 (for copper), Zn-OG62 (for zinc), and PGM-ICP27 (for gold, platinum and palladium). The reader is referred to: www.alsgobal.com for details of analytical procedures described above.
Michael P. Rosatelli, P.Geo. and senior geological consultant to Cleghorn, is the designated "qualified person" for the purposes of National Instrument 43-101 that reviewed and approved the technical content of this release.
Additional Property Acquisitions:
Cleghorn is continuing due diligence on several property and/or transactional opportunities, in Canada and separately, located in International and jurisdictions, and will provide additional information should the examinations lead to favourable conclusions and affordable transactions.
About Cleghorn Minerals Ltd.:
Cleghorn is a junior mineral exploration company with a 100% interest in the Meech Lake - Matachewan Prospect, a property located in northeastern Ontario, subject to an aggregate 3.5% NSR.
